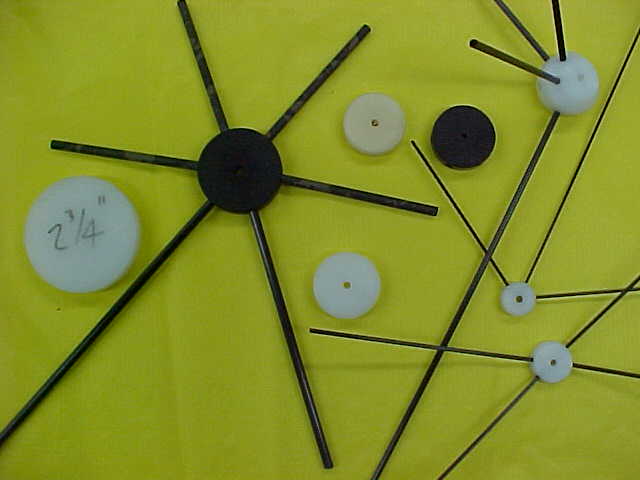

TINKERTOY FITTINGS:
ABS or
UHMW discs with holes for sticks around the outside edge. Since the holes are drilled using
an index head on a drill press with a mill table, it is
possible to drill holes at any number of degrees, in
increments of one degree. That means, yes we can do
22 degrees or 23 degrees; but not 22.5 degrees. If your design
requires the framework to be glued into the tinkertoy fitting, you must
order ABS. The UHMW is lighter and cheaper, but it cannot be
glued. |
|
The diameter of the tinkertoy can vary from
.75 up to 5 in UHMW; and, from .75
up to 2 in ABS. The outside diameter of the sticks you are
using, the number of sticks in the circle, and
the depth of the stick holes, control the diameter (and cost) of the
fitting.
Because of the number of variations, we require you to telephone your order into us (1-610-395-3560). When you order, you must specify what size spar you will use and the number of holes around the fitting. Remember, UHMW cannot be glued. |
ABS PLASTIC:
CODE | DIAMETER | MATERIAL THICKNESS (up to) | *COST $ |
CTTA75 | .75 | .50" | 4.25 |
CTTA10 | 1.0 | .50" | 4.25 |
CTTA150 | 1.5 | .50" | 6.25 |
CTTA20 | 2.0 | .50" | 7.25 |
CTTA20 | 2.0 | .75" | 8.35 |
UHMW PLASTIC:
CODE | DIAMETER | MATERIAL THICKNESS (up to) | *COST $ |
CTTU75 | .75 | .50" | 4.25 |
CTTU10 | 1.0 | .50" | 4.25 |
CTTU125 | 1.25 | .50" | 4.85 |
CTTU137 | 1.37 | .50" | 4.85 |
CTTU15 | 1.5 | .50" | 5.45 |
CTTU20 | 2.0 | .50" | 5.75 |
CTTU20 | 2.0 | .75" | 6.10 |
CTTU25 | 2.5 | .75" | 6.65 |
CTTU275 | 2.75 | .75" | 9.90 |
CTTU325 | 3.25 | .75" | 12.30 |
CTTU500 | call for quote | call for quote | call |
* costs are approximate, based on 2007 rates for a standard fitting. Additional costs will apply for non-standard requirements.
