[skiandgolf1962]

I have 10 delta dollar store kite
The rainbow ones with a keel

I want to stack them
I try linking them together with 2 lines thru the side holes (think ladder)
But this didn’t work. And set up was taking way too long

So now I have 2 other idea’s
1: Sewing a pigtail on the top of each (1/4 ribbon) (see red loop)
Start at the toe point sew in and cut a small hole in top skin pass thru loop back thru and sew down

2: sew a loop on the top skin
Sew it at the start and end of the keel (see blue loop)

Witch one will work?
COMMENTS PLEASE

http://offtype.net/image_4431378604040.gif.html
_________________
Have a fun filled day
Go fly a kite

[Fore Check]

I would go for option #1, sort of.

I think that if your loop wrapped around the spine at the point that was vertically equal to the tow point location, so that the train line was anchored to the spine and not to the keel, it would work.

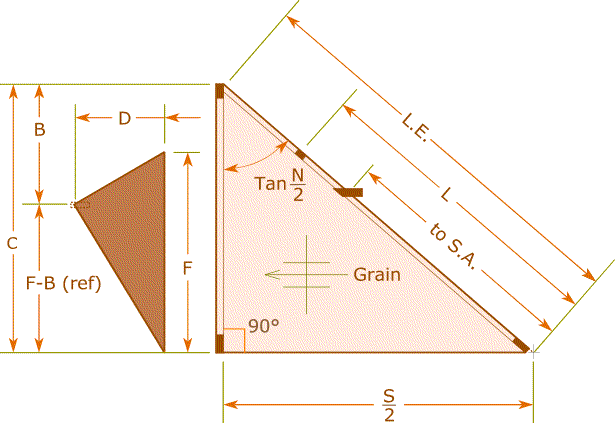

If you look at the sketch of the "standard" Dan Leigh delta, I'm talking about making the attachment loop wrap around the spine at "B"


_________________
Simon

Discovering Something that Doesn't Exist...

Radix Lecti Rex

[coupster]

I stacked 5 DT Box Deltas last season. With the obvious exception of the top kite, I attached 2 pigtails to the tow point on the keel, 1 short and 1 long. The long one was threaded up through grommetted holes in the side of the box (right beside the tow point) and in the top (back) of the box (about in the middle) and attached via a larks head to the short pig tail of the next kite up the line. (You should be able to just run the long pigtail up the side of the keel and through the sail) The kites were spaced as far apart as the width of the wing span and although they flew fine. Longer spacing is on my to do list.

This method of stacking permits each kite to essentially fly on its own line separate from the rest. This separation worked so well that on its maiden flight a catastrophic failure of the spreaders on the 2 top kites had no effect on the lower kites fly ability and I was able to bring the train down in a controlled manner.

Beware of the pulling power of your 10 kite train, there's a discussion somewhere here on the multiplication of the force generated as additional kites are added to the line. I used 350# line with the five and I'm glad I did.

10 kites should be a spectacular sight. Take a picture unlike me who didn't.

[kiteguy]

I recently saw a picture of a stack of delta kites.

There was a line from the ends of the spreader spar to the same point of the kite above, etc. There was also a line from the tail end of the center spar to the tail end of the kite above...etc.

I could not tell exactly, but it looked as if there was a line from the keel of the above kite to the center of the cross spar of the kite below, on each. There did not appear to be much, if any, stress on the keel line. Just enough to keep the keel down as a vane.

Now, I wonder......where did I see that picture?
_________________


Dave Ellis
Kites + Kids = Education

[KiteSquid]

[themax]

Not as satisfying as a true train, but easier, is to attach all deltas to a line with leaders. It's not as satisfying as a train because the kites are all free to do as they please with no coordination with their neighbors.
_________________
Jason
*****
Invention, my dear friends, is 93% perspiration, 6% electricity, 4% evaporation, and 2% butterscotch ripple. --Willy Wonka

[kiteguy]

OK, I just reread the original message. 10 dollar store delta kites. Plastic, or ripstop?

Either way, another option would/could be to make an arch. Use a long piece of line. You would need about 150 ft of line for the arch. Loop on each end to fasten to ground stakes. Put some attachment points on this line, about 12 feet apart. These could be loops, or maybe larkshead some swivels, or pop can tabs. or whatever.

Put a 5 ft line on each kite. Fasten each to one of the loops and finally you would have an arch with delta kites flying on a 5 ft line.

I did something similar to this with some sled kites. It put the kites down where they could be seen by the kids around the area, and not hanging waaaay up there, specks in the sky.

To paraphrase a quote from someone that was quoting someone else....Once you have seen one speck in the sky, you have seen them all.
_________________


Dave Ellis
Kites + Kids = Education
